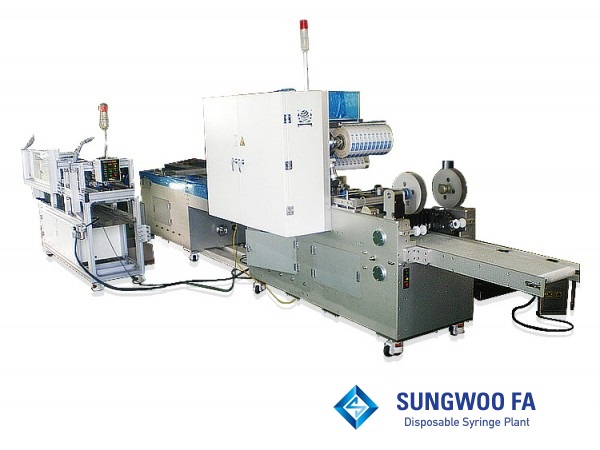

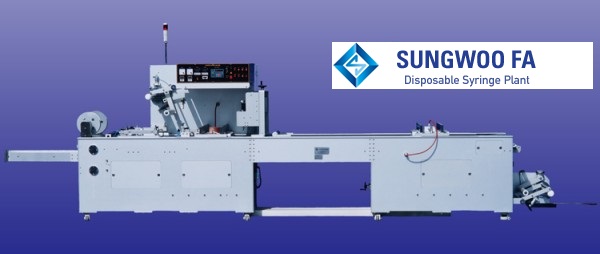

1. SPECIFICATION

a. Demension : 6100L x 1100W x 1800H

b. Weight : About 2000Kg

c. Electric Power : AC 3P 220V/380V N, G , 50/60Hz

d. Electric Consumption : 9.5Kw

e. Air Pressure : 6Kg/Cm2　　,500L/MIN

f. Product Capacity : 14~16 Cycles/Min

2. PART SPECIFICATION

a. Main Frame  Meterial : AL6061  Coating : Anodizing

b. DRIVING  Main Motor : Servo Motor 1HP x 1/20(Mitsubishi)  Main Driving Chain : Clamp Chain

c. FILM SUPPLY   Using film: Use film of Width 415~420mm, thickness 90~120㎛. 90㎛ 420~425W*1000M (COREø76) 100㎛ 420~425W*1000M (COREø76) 120㎛ 420~ 425W*600M (COREø76)  Film Fixing Unit : Air Shaft  Film Tension Cylinder : CDA 40x10st

d. PAPER SUPPLY  Using Paper of Width 380 ~ 385W(COREø76)  Paper Fixing Unit : Air Shaft  Paper Tension Cylinder : CDA 40x10st

e. FORMING PART  Up & Down Moving : Arm Type  Cylinder : CDA 80x75st  Forming Type : Stright Type  Vacuum Valve

f. SEALING PART  Up & Down Moving : Arm Type  Cylinder : CDA 80x75st  Upper Mold Coating : Teflon(FEB) Coating

g. VERTICAL CUTTING  Cutting Type : Loadless Cylinder  Loadless Cylinder :BC2M10 380S

h. PRINTING PART  Printing Type : Stamp Type  Loadless Cylinder : BC2M10 440S

i. HORIZONTAL CUTTING  Cutting Type : Roll Cutter  Base Roller Material : SKH9  Circular Knife Material : SKD11

j. CONVEYOR PART  Belt Material : P.V.C  Color : White

k. LOSS WINDER  Type : One Touch Type

l. CONTROLL  P.L.C Controller (LG)  Digital Temperature Controller  Eye Mark Sensor : TLu-015
