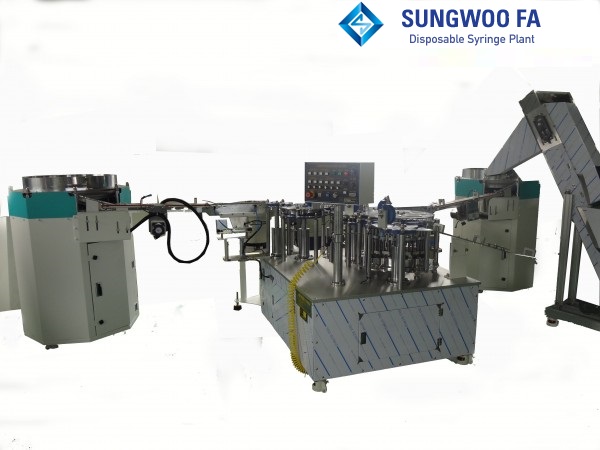

AUTOMATIC SYRINGE ASSEMBLY MACHINE
페이지 정보
작성자 manager 댓글 0건 조회 8,621회 작성일 09-09-18 16:23본문
1. Dimension : 3000 x 2200 x 1400 (L x W x H)
2. Weight : About 1500Kg
3. Electric Power : AC 220V
4. Electric Power Consumption : 7.5Kw
5. Air Consumption : 6Kg/cm2 , 600L/min
6. Production Capacity : 15,000 ~ 16,000Pcs/Hour(1CC) 18,000 ~ 20,000Pcs/Hour (2CC, 3CC) 16,000~19,000Pcs/Hour (5CC)
11,000 ~ 12,000Pcs/Hour(10CC) 8,000 ~ 9,000Pcs/Hour(20CC)
7. Main Driving Motor : A.C Motor 1HP
8. Silicon Spray Type : Nozzle Spray(Continuity)
9. Frame Material : AL6061
10. System Controller : P.L.C Controller
11. Drum Material : M.C
12. No. Of Worker : 2Person
13. Barrel Feeding : Parts Feeder, Linear Feeder
14. Plunger Feeding : Parts Feeder, Linear Feeder
15. Gasket Feeding : Parts Feeder, Linear Feeder
16. Needle Feeding : Parts Feeder, Linear Feeder
