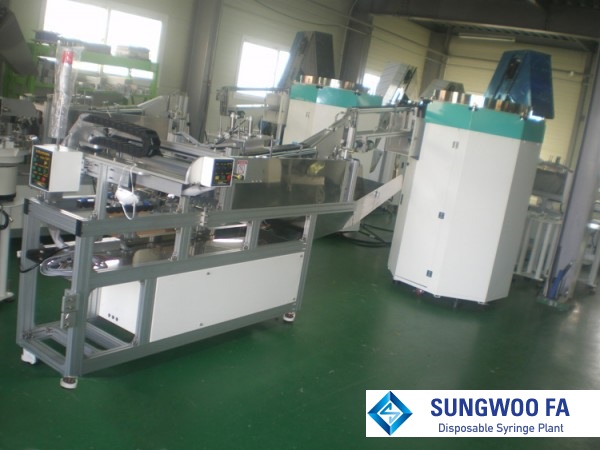

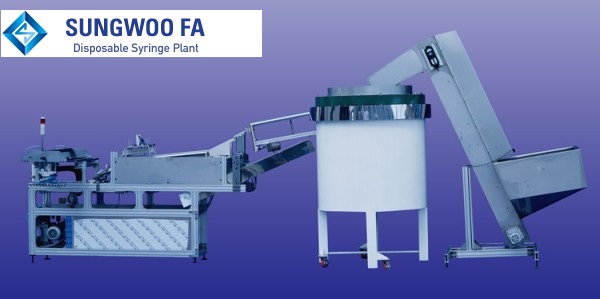

AUTO. SYRINGE FEEDING MACHINE
페이지 정보
작성자 manager 댓글 0건 조회 7,465회 작성일 09-09-18 16:15본문
1. Dimension : 6400 x 1200 x 2450 (L x W x H)
2. Weight : About 1500Kg
3. Electric Power : AC 3P 220V/380V 50/60Hz
4. Electric Power Consumption :2.5Kw
5. Air Consumtion : 6Kg/cm2 , 200L/min
6. Production Capacity : 13 ~ 16 Cycles/min
7. Feeding Type : Centrifugal Type
8. Conveyor Meterial : P.V.C
9. Drum Dia : Ф960
10. Drum Meterial : M.C
11. Syringe Fixing Type : Finger Type
12. Conveyor Driving Motor : Geared Motor 0.4Kw
13. Drum Driving Motor : Geared Motor 0.4Kw
14. Feeding Cylinder : E-MY2B25-700WTN
15. Main body Material : AL6061
