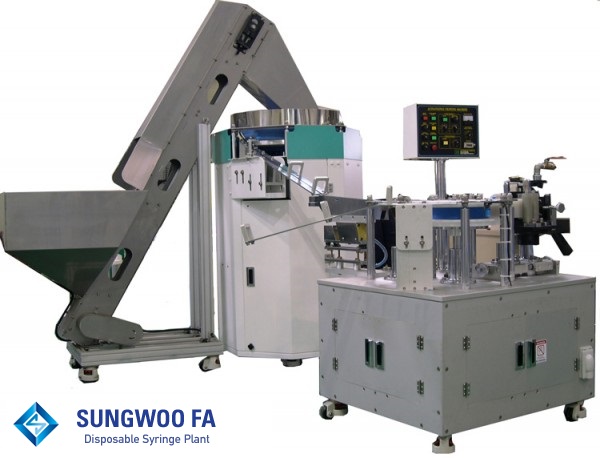

AUTOMATIC SYRINGE PRINTING MACHINE
페이지 정보
작성자 manager 댓글 0건 조회 8,024회 작성일 09-09-18 15:53본문
1. Dimension : 2400x2050x2200(LxWxH)
2. Weight : About 400Kg
3. Electric Power : AC 220V
4. Electric Power Consumtion : 3.0Kw
5. Air Consumtion : 6Kg/cm2 , 150L/Min

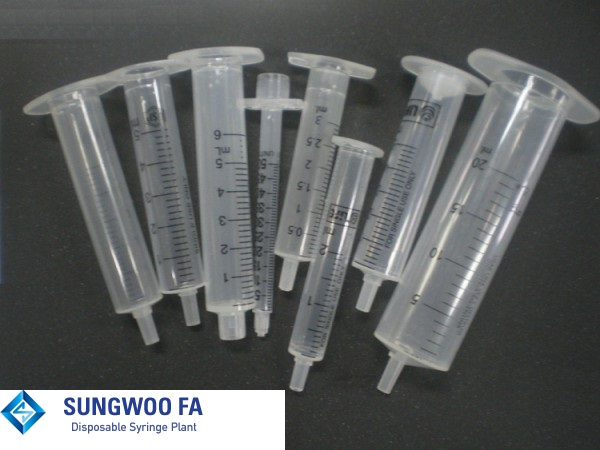

6. Production Capacity :18,000~20,000Pcs/Hour(1CC) 20,000~23,000Pcs/Hour(3CC) 20,000~22,000Pcs/Hour(5CC) 14,000 ~ 15,000Pcs/Hour(10CC) 11,000 ~ 12,000Pcs/Hour(20CC) 6,000 ~ 8,000Pcs/Hour(50CC)
7. Main Driving Motor : D.C Motor 1HP
8. Ink Supply Type : Ink Pump Type
9. Barrel Feeding : Centrifugal Feeder,Linear Feeder
10. Printing Roller : Ф95
11. Silicon Roller : Ф190.5
12. Frame Material : AL6061
13. No. Of Worker : 1Person
