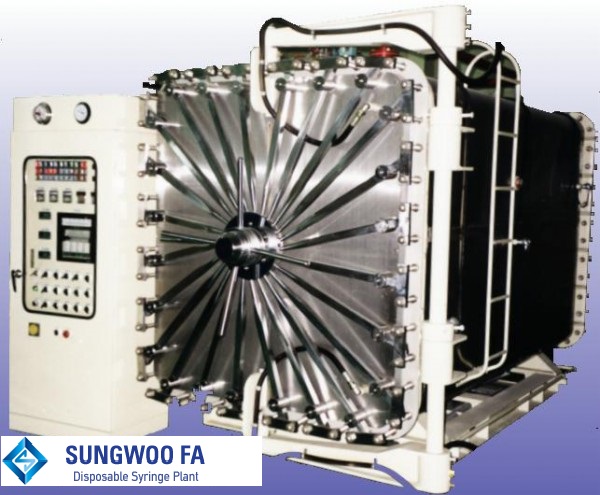

E.O GAS STERILIZER SPECIFACATION
페이지 정보
작성자 관리자 댓글 0건 조회 8,094회 작성일 09-09-18 15:36본문
1. Size of the sterilizing chamber:
Outside : 2,100W x 3,900L x 2.300H
Insude : 1,450W x 3,300L x 1,500H
2. Material of the sterilizing chamber
Interior material : SUS304/Outer material : SUS304
3. Door opening and shutting device : Astoria System
4. Operational mode : Automatic system
5. Gross electric capacity : 33KW x 4P x 50/60HZ
6. Gross weight of chamber : 7,500KG
7. Maximun internal pressure of chamber : 1.8KG/CM( 2)
8. Internal vacuum pump pressure of chamber : 680~700mmHg
9. Vacuum pump(water-cooled) : 11KW (15HP)
10. Heating device : SUS304 pipe heater : 14KW (7KW x 2Pcs)
11. Humidifier : SUS304 pipe heater : 7KW
12. Warm water-circulating motor : 0.5KW
13. Other fittings : Gas gathering device(2), Humidifier 1Set
14. Gas purifier 1Set, gas vaporizer 1Set, germfree filter
Outside : 2,100W x 3,900L x 2.300H
Insude : 1,450W x 3,300L x 1,500H
2. Material of the sterilizing chamber
Interior material : SUS304/Outer material : SUS304
3. Door opening and shutting device : Astoria System
4. Operational mode : Automatic system
5. Gross electric capacity : 33KW x 4P x 50/60HZ
6. Gross weight of chamber : 7,500KG
7. Maximun internal pressure of chamber : 1.8KG/CM( 2)
8. Internal vacuum pump pressure of chamber : 680~700mmHg
9. Vacuum pump(water-cooled) : 11KW (15HP)
10. Heating device : SUS304 pipe heater : 14KW (7KW x 2Pcs)
11. Humidifier : SUS304 pipe heater : 7KW
12. Warm water-circulating motor : 0.5KW
13. Other fittings : Gas gathering device(2), Humidifier 1Set
14. Gas purifier 1Set, gas vaporizer 1Set, germfree filter
