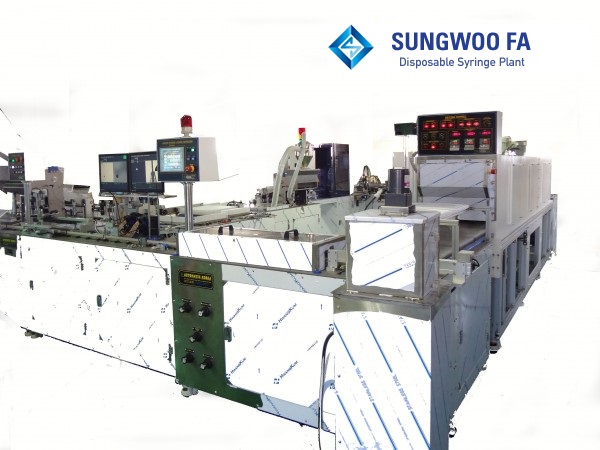

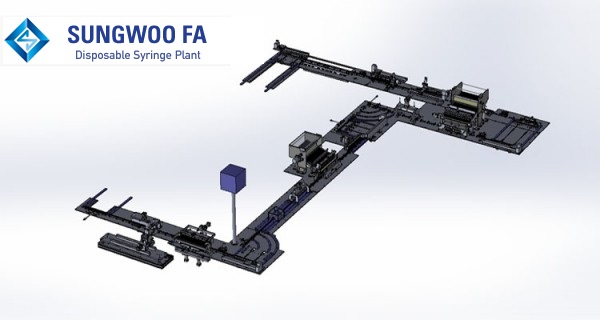

NEEDLE LINE SPECIFACATION
페이지 정보
작성자 manager 댓글 0건 조회 7,159회 작성일 09-09-18 15:31본문
1. Dimension : 7,200L x 5,964W x 2,550H
2. Weight : About 3000Kg
3. Electric Power : AC 3Px220/380V, N.G 50/60Hz
4. Electric Power Consumtion : About 20Kw
5. Air Pressure : 6Kg/Cm2
6. Air Consumtion : About 1,300L/min
7. No. Of Worker : 2Persons
8. Production Capacity : 48,000 ~ 52,000Pcs/Hour
9. Main Frame Material : Base : SS41 Cr Hard Coating Bady : AL6061
10. Hub Supply Type : Shut Type Hub Guide Moving With a Air Cylinder
11. Electric Discharge Treatment : 25,000V( Transformer)
12. Cannula Supply Type : Lift Type
13. Bonding Type : Wheel Type (Epoxy or U.V) Servo Controller
14. Hardening Tunnel
15. Inspection : Reversed, Point, Blockage , Bending, Non- Cannula
16. Ejection Of Bad-Needle : Auto Ejector
17. Silicon Coating : Dip Type
18. 2nd Point Inspection : Buzzer
19. Cap Assembly Part
20. Auto Capacity Counter
21. Zig : 350Pcs OPTION 1. COVER
